Architectural Considerations for the Installation of an Emergency

Ventilation Calculation for the Transformer Room Download Transformer

Here are the key points necessary to be considered: Generator size and capacity: The design of adequate ventilation varies depending on the size and capacity of generators. The requirements will increase to manage the heat dissipation of large generators. Room size and layout: The room configurations effectively decide the ventilation.

Figure 5 Prefabricated Indoor Emergency Generator Room Layout

The Importance of Generator Room Ventilation. By making sure your generator room is properly ventilated, you can keep things running smoothly and prevent dangerous accidents. Ventilation helps to control the following aspects of a generator room: Temperature of Generator Room: Regulating temperatures of generator rooms is important since.

Complete Design & Modelling of Generator Room Ventilation YouTube

An example would be when this type of emergency generator is located in a two-hour rated service room, and the ATS for life safety equipment is located in another one-hour rated service room, as fire protection of conductors between this generator and emergency lighting would not be required by Sentence 3.2.7.10.(1) of the NBC.

Generator Room Ventilation Requirements Central States Diesel Generators

Tom Divine: NFPA 110, 2022 Edition, 7.3.1 requires battery-powered emergency lighting is for Level 1 or Level 2 EPS equipment locations, other than units housed in enclosures without walk-in access. Walk-in access appears to refer to enclosures that provide room for personnel between the generator and the inside wall of the enclosure.

Architectural Considerations for the Installation of an Emergency

lukaiENG (Mechanical) 7 Mar 16 17:30. a lot of generator installations have a re-circulation damper on the discharge side of the radiator - this can serve 2 purposes: 1. prevent sucking in the damper/walls. 2. provide some heat to the space when it is very low ambient conditions.

KA440105408 Emergency Generator Room Ventilation PDF

Level - two levels of equipment installation, performance, and maintenance. Level 1 systems shall be installed where failure of the equipment to perform could result in loss of human life or serious injuries. Level 2 systems shall be installed where failure of the EPSS to perform is less critical to human life and safety.

Ways of starting and testing emergency generator

The location of the generator room is crucial for its functionality and safety. It should be situated in an easily accessible area, preferably close to the main electrical panel and fuel storage. The room should be well-ventilated to prevent heat buildup and allow for proper airflow. Additionally, it should be away from areas prone to flooding.

Generator Room Layout

EMERGENCY GENERATOR REQUIREMENTS . A. Location Requirements 1. Section 7.2.3 of NFPA-110 states that rooms, shelters, or separate buildings. Section 7.11.1 of NFPA-110 states that the room in which the emergency. air ventilation inlets, or the engine air-intake system. 6. Section 4.1.3.1 of NFPA-37 states that engines and their weatherproof

How to Install Fire Control Emergency Light in Generator Room

Proper ventilation and airflow is vital to meeting all generator room design requirements. Keep your employees and your equipment safe by ensuring that there is adequate airflow to support the engine combustion process and reject the heat that is produced during normal operations. To keep your power source in excellent working condition, your.

Indoor Generators & Control Buildings Advantages & Considerations

EMERGENCY POWER SYSTEM Power outages can mean more than lights out. For many facilities, an outage of even a minute can result in the loss of millions of dollars — or worse, put human lives at risk. National Fire Protection Association standard 110 — the standard for emergency and standby power systems — outlines requirements for the

GENERIC GENERATOR INSTALLATION MANUAL Section 4

Generator-room temperatures in excess of 104 F typically require de-rating of the generator set and potential upsizing of components to support the design electrical load. The magnitude of de-rating varies with manufacturers, generator set capacity, engine fuel type, and more. Typical de-rating of 10% to 15% per 18 F rise over 104 F can be.

Nfpa Requirements For Emergency Generators Printable Form, Templates

There are many factors to consider when contemplating emergency generator room design; environmental factors are an example of important items to consider. give us a call 610-658-3242. Services.. make sure the generator room is elevated. Ventilation: Requirements maintain that air must be allowed into a generator room to allow for cooling.

Summer maintenance tips for emergency generators BIC Magazine

Generators can have different ratings indicating overall operating capacity shown below: Standby - 60 to 70% of the rating for 24-hour periods up to 500 hours per year operating time. Emergency Standby - 60 to 70% of the rating for 24-hour periods up to 200 hours per year operating time. Prime - 60 to 70% of the rating for extended periods with.

Generator room Ventilation Calculation and Louver sizing using

The egress lighting system can be provided with 90-minute battery backup or supplied from an emergency generator system. For example, power packs are listed for normal and UL 924 operation. Misapplying and/or missing the listing and testing requirements can be a considerable complication resulting in cascading implications.

Proper Room Ventilation for Indoor Generator Operation

The space requirements for emergency generator sets are not at the top of an architect's list for the building design. Since large power generators, in particular, take up more space, problems do occur when providing. For rooms where ventilation is constrained, a ventilation flow analysis should be performed to analyse that ventilation can.

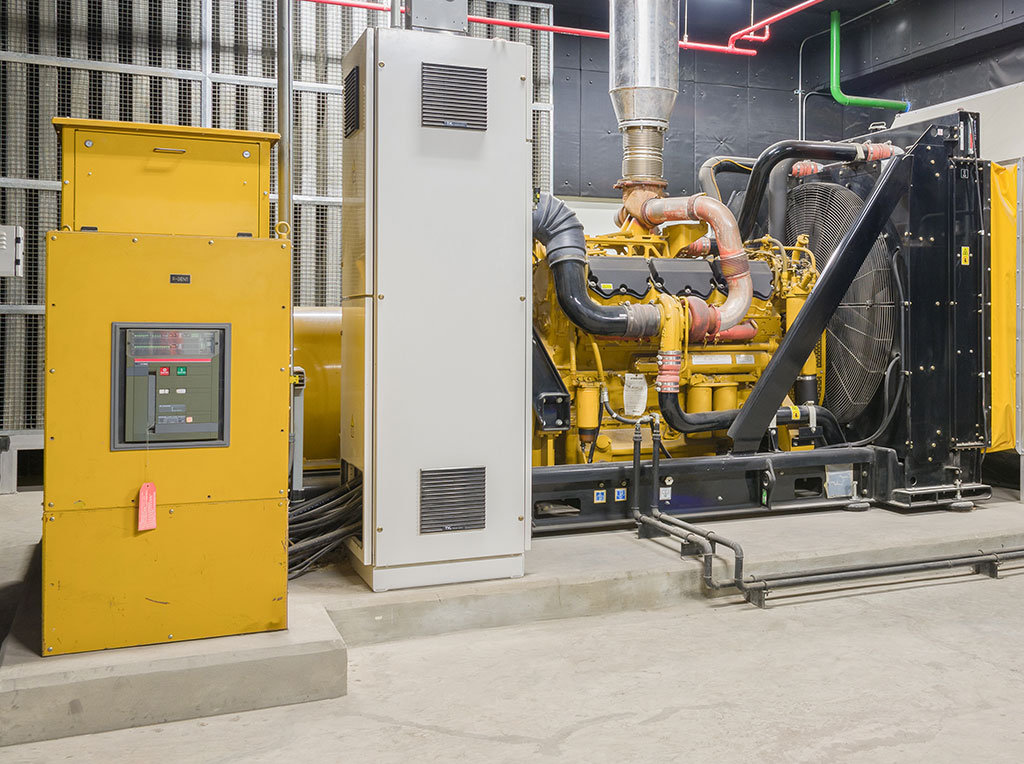

Flame detection for generator rooms SENSEWARE

For example, if the engine room temperature is 24°C (75°F) without the engine running, the ventilation system should maintain the room temperature between 32.5°C (90°F) and 36.5°C (97.5°F) while the engine is in operation. Caterpillar recommends a ventilation design that ensures engine room temperature does not exceed 49°C (120°F).
